GNY Bottom Hose Loader “A” Frame Model No. B81E
Oil & Gas Handling Product
GNY Bottom Hose Loader
GNY Bottom Hose Loader
“A” Frame Model No. B81E
Bottom Hose Loader | Top Loader | Split Flange Swivel Joint
“A” Frame Model No. B81E | “A” Frame Bottom Loader

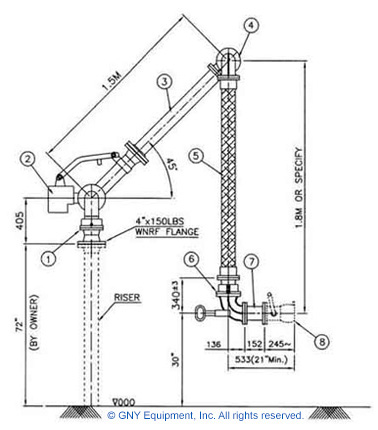

- Style 50 Heavy duty C.S. Swivel Joint (EPOXY Painted/Powder Coated)
- Torsion spring balancing system
- Pipe Arm – Aluminum
- Style 40 Aluminum Swivel Joint
- Hose with Flanged-Ends
- Style 30 Aluminum Swivel Joint (Split Flange Design) with Handle
- Aluminum Spool Piece
- APT Bottom Loading Coupler with Viton Seals
Note:
- All dimensions are in mm U.O.N.
- Please specify the required Hose length if different
- Safety Break-Away coupling can be installed replacing ALU. Spool at itme No.7
